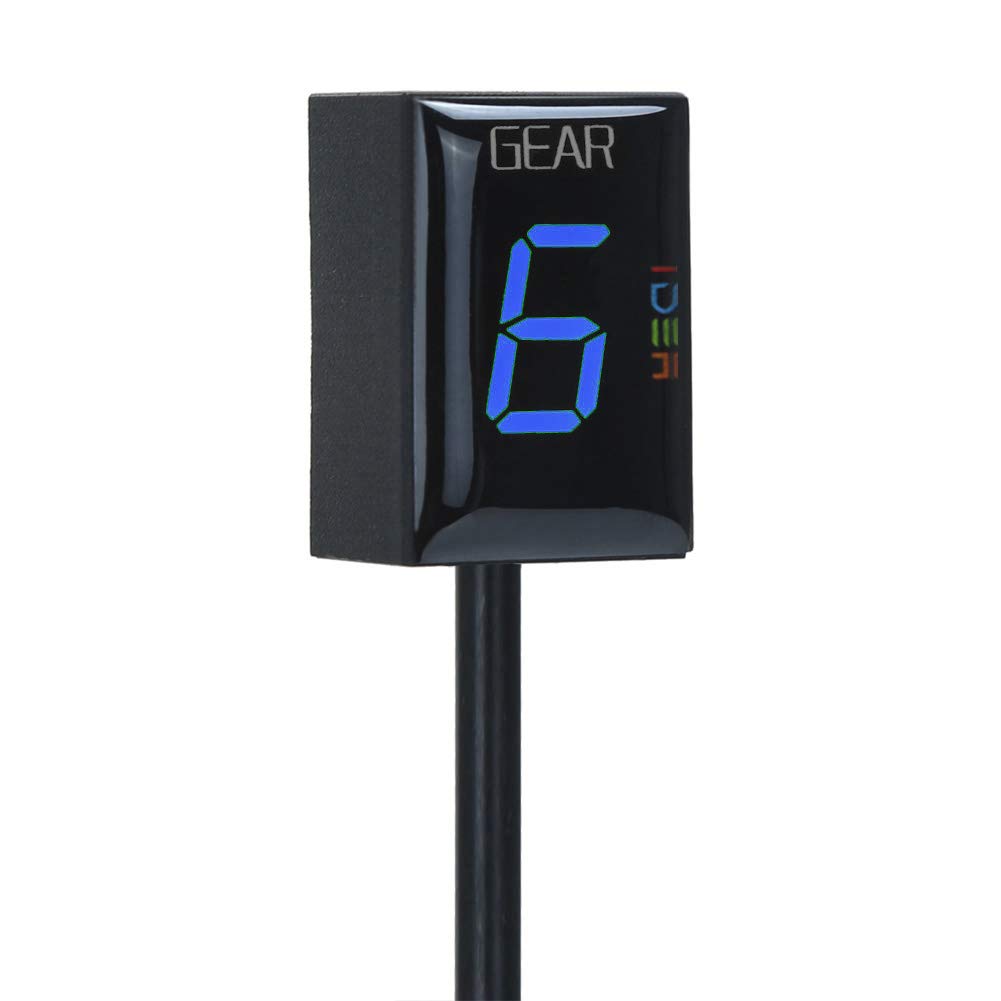

Waterproof Motorcycle Gear Indicator for Yamaha, Motorcycle LED Digital Display Shift Lever Sensors for Yamaha (Blue)

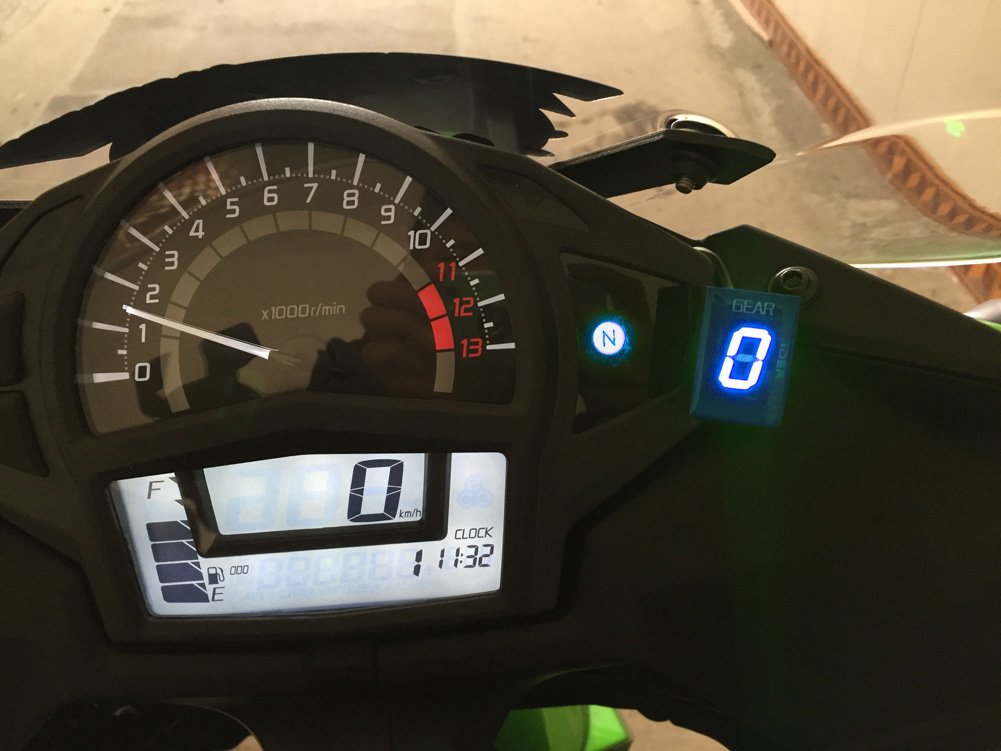

First up, let’s get this part of the discussion over with right away: Yes, this is 100% a knock-off of the GIpro X-type gear indicator. The previous version, not the new G2 version. But at under half of the price. Even the instructions are obviously the GIpro instructions, but with a ctrl f search and replace “GIpro” to “Idea.” It even mentions the “SpeedoHealer,” which is a product make by GIpro.So you’re buying a clone, kiddos. If the ethics bother you, pony up for the real thing. This ain’t it.It may or may not use the same internal components, and may or may not have been knocked off by the factory contracted to make the real thing. Who can say? My example operates flawlessly. I installed it on a 2015 Yamaha FZ6R with the aid of the wiring diagram found in the back of the official service manual. Installation requires four wires: The unit comes with a male and female plug that place it in line with the speed sensor wire coming from the transmission. This plug is located under the tank, in the rearmost of the two big rubber boots. The plugs are easy to spot, since they are the only two on the entire bike that look just like the ones on this gear indicator. The third wire, the green and black one, goes to the crankshaft position sensor wire, which is conveniently located in the other big rubber boot in the same location, the frontmost one, and is a yellowish green square coupler with two wires coming out of it. The instructions say to use the “natural or black wire,” and not the grey wire. In my example the correct wire was white (next to the grey one). The fourth wire can go to any switched 12v supply wire, and I followed the instructions recommendation and used the positive wire from the rear brake light switch (found directly above the crankcase and going to, uh, the rear brake light switch).It’s worth mentioning that the “vampire” wire tap splices the kit comes with are completely craptastic. The ones I got in a big old bucket at Harbor Freight For $2 were better — so don’t use them, just buy some real ones from the auto parts store or similar. Several small zip ties of extremely questionable quality are also provided, which is not a problem for me since there’s basically nothing to zip tie to between the harness and the handlebars on the FZ6R. So I taped my wire to the inside of the frame tube with electrical tape instead. Keeping it classy, as always.I was also surprised to find that they include an extra stick on “lens” for the front of the indicator for when you F yours up in a few years. Have fun remembering where you put it in the meantime.The gear indicator operates just as described. It is a “universal” type that calculates your current gear based on the 1:1 relationship between wheel speed and engine speed. I found it to be fast and accurate provided you heed the instructions which clearly say that it will only read an accurate gear with the bike in motion and the clutch fully released. You are only able to “fool” it into showing an incorrect gear (or more often, no gear) by deliberately slipping the clutch at speed, upshifting while stopped (in which case it corrects when you move), or presumably while fully airborne. Not even doing a burnout fools it, since it gets your wheel speed from the countershaft sprocket.I got the red model and have no issue reading it in direct sunlight. (There is no orange model that is closer to the FZ6’s stock dash illumination.)I only docked stars for the absolutely awful install parts and flagrantly copy-pasted instructions, which were singularly unhelpful in showing me where to locate the correct wires on my bike.
